Laser Cutting Advanced Tutorial 01: Power impact on cutting

Hello friends, The first issue of this blog is Laser Cutting Advanced Tutorial 01: Power impact on cutting.The main content is to introduce the effect of different power on cutting, mainly in visual effects.
List of items:

laser machine : Nova 35 (80W)

laser soft: RD works

Glued wood board: 3mm

parameter settings:

Cutting speed: 20mm/s

Cutting power: 1%, 10%, 50%, 70%

Cutting focal length: 6mm

Whether to blow: weak blowing

Comparison effect:

We can first see the effect of the cut:

In the picture, the depth of the horizontal lines cut by the lasers of different powers on the wooden blocks is obviously different.

At constant speed, change the amount of power to see the effect. We can see that the depth of the cut will gradually increase as the power increases.

When the power is 1% and 10%, it can be seen that the cut on the block is relatively shallow.

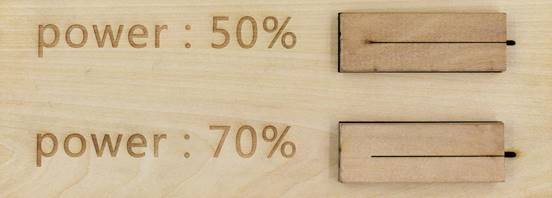

When the power is increased to 50% and 70%, the cut marks of the wood block become deeper and the color becomes black. The depth of the side slits directly reflects the effect of the change in power on the cutting effect.

conclusion:

Therefore, in summary, we can get a conclusion like this:
  1. The higher the power, the higher the energy, the deeper the cu
  2. The smaller the power, the smaller the energy and the shallower the cut
  3. Power is an important factor affecting the depth of cut
If you want to know about laser cutter and laser engraver machines, you can continue to pay attention to this blog, I will continue to update regularly, thank you for visiting.



Useful link: Laser cutter reviews
